High Precision User Friendly CNC Bending Machine For Metal Bending
| MOQ: | 1pcs |
| Price: | Negotiable |
| Standard Packaging: | Sea-Worthy Packing or Air-Worthy Packing |
| Delivery Period: | 7-25Working Days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 Unit per Year |
High Precision CNC Bending Machine
,User Friendly CNC Metal Bending Machine
,High Precision Bending CNC Machine

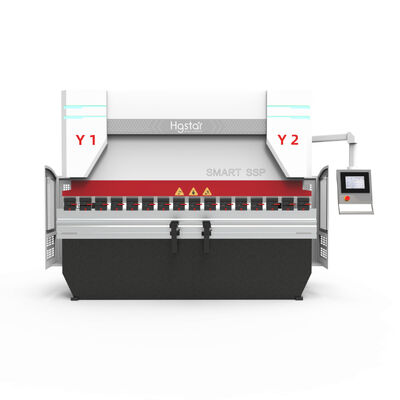

Smart SSP1 Bending Machine
The Smart SSP1 Bending Machine offers unparalleled precision and efficiency for your metal bending needs. Its electro-hydraulic servo valve, imported from Germany, and the FAGOR grating ruler from Spain ensure synchronized control of the main oil cylinders, delivering accurate feedback and precise slider operation. This results in high bending accuracy and repeatable positioning.
V-axis compensation effectively mitigates the impact of slider deformation during bending, maintaining workpiece quality. The numerical control system automatically manages the compensation amount.
The X-axis rear retaining frame, featuring a servo motor, provides precise control over movement. Similarly, the R-axis rear stopper, driven by a servo motor and reducer, enables accurate vertical adjustments via the linear guide.
Experience energy savings, lower oil temperatures, and enhanced environmental protection with our closed-loop, non-overflow control method. Size and pressure changes are rapidly processed and corrected, ensuring optimal performance.
Key Benefits:
· High Precision Bending: Achieved through advanced electro-hydraulic servo valve and grating ruler technology.
· V-Axis Compensation: Eliminates deformation effects for consistent workpiece quality.
· Energy Efficient: Closed-loop control minimizes energy consumption and reduces oil temperature.
· Precise Axis Control: X and R axes controlled by servo motors for accurate positioning.
· Environmentally Friendly: Reduced energy consumption contributes to a greener operation.
Target Industries & Applications:
Ideal for industries requiring precision metal bending, including:
· Automotive
· Aerospace
· Electronics
· Manufacturing
· Construction
Product Attributes
FOB Unit: set
Product MOQ: 1
FOB Price: 0
Packaging & Delivery: To be determined by negotiation
Technical Specifications
| NO | CONFIGURATION | NUMERICAL VALUE | UNIT |
| 1 | Nominal pressure | 1350 | KN |
| 2 | Foldable plate width | 3200 | mm |
| 3 | Slide stroke | 200 | mm |
| 4 | Maximum opening height | 420 | mm |
| 5 | Column spacing | 2700 | mm |
| 6 | throat depth | 400 | mm |
| 7 | Fast down speed | 160 | mm/ s |
| 8 | Return speed | 130 | mm/ s |
| 9 | Working speed | 10 | mm/ s |
| 10 | Main motor power | 11 | Kw |
| 11 | CNC system | DA53T | |
| 12 | X-axis travel of rear stopper | 500 | mm |
| 13 | Number of control axes | 4+ 1 Axis (Y1 ,Y2 ,X ,R+V) | |
| 14 | Slider repeat accuracy | ≤±0.01 | mm |
| 15 | Slide positioning accuracy | ≤±0.02 | mm |
| 16 | Workpiece straightness | 0.3 / m | mm |
| 17 | Bending angle error | <±30 | ??? |
| 18 | Raster scale resolution | 0.005 | mm |
| 19 | X-axis travel | 500 | mm |
| 20 | X-axis speed | 200 | mm/s |
| 21 | positioning accuracy | ±0.05 | mm |
| 22 | Repetitive positioning accuracy | ±0.015 | mm |
| 23 | Machine wight | 10 T | T |
| 24 | Machine diamentions | L 3500 / W 1580 /H 2500 | mm |
Components List
| NO. | PROJECT | QTY | REMARK |
| 1 | Control System | 1 Set | Netherlands DELEM DA53T System |
| 2 | Servo Motor And Drive | 1 Set | Nanjing Eston |
| 3 | Hydraulic Pump | 1 Set | SUNNY, USA |
| 4 | Hydraulic Valve | 1 Set | REXROTH |
| 5 | Ball Screw | 1 Set | Taiwan |
| 6 | Linear Guide Rail | 1 Set | Taiwan |
| 7 | Connector | 1 Set | German |
| 8 | Seal Ring | 1 Set | Japan or Germany |
| 9 | Grating Ruler | 1 Set | Spain FAGOR |
| 10 | Main Electrical Components | 1 Set | Schneider |
| 11 | Cylinder | 1 Set | Jining Taifeng |
| 12 | Servo Main Motor | 1 Set | Nanjing Eston |
