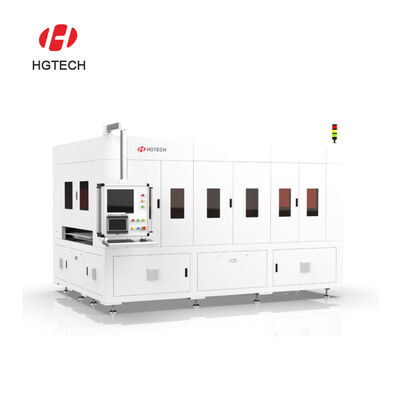

Clean Energy Photovoltaic Laser Processing Machine 220V 50HZ With High Processing Accuracy
| MOQ: | 1 |
| Delivery Period: | 25 days |
| Payment Method: | L/C,D/P,T/T,Western Union |
| Supply Capacity: | 10sets/week |
Detail Information
Place of Origin
China
Brand Name
HGTEHC
Certification
CE,FDA
Name:
Laser Processing Machine
Power:
＞40W
Cutting Head:
Three Head
Processing Size Range:
1000x500-2200x1200mm
Power Supply:
220V/50HZ
Weight:
4200KG
Highlight:
Laser Processing Machine 220V
,Photovoltaic Laser Processing Machine
,Laser Processing Equipment 50HZ
Product Description
Clean Energy Photovoltaic Laser Processing Machines
Infrared picosecond laser perforators and short pulse width green light laser perforators are used for laser perforation of hard and brittle materials such as glass and quartz, and have the advantages of high processing yields, 7*24-hour continuous operation and micro-perforation compared to traditional mechanical processing.
| Caption | ||
| ITEM | PARAMETERS | |
| Laser system | Power | ＞40W |
| Laser pulse | ＜10ns | |
| Laser source | Imported nanosecond green light | |
|
Main configuration |
Cutting head | Three head |
| Fθ lens BOX range | 50mmx50mm | |
|
Equipment performance |
Processing size Range | 1000x500-2200x1200mm |
| Processing hole position accuracy | ＜±0.2mm | |
| The processing time | ＜7s | |
|
Operational environment |
Power supply | 220V/50HZ |
| Environment | temperature:10-30℃ humidity:＜50% | |
| Size | length3700mm*width2500mm*height2000mm | |
| Weight | 4200KG | |
Features:
- Adopting an imported picosecond/short pulse width laser, good beam quality, small focus spot, high stability
- The machine can be equipped with a multi-vibration lens system to reduce the laser processing time
- The optical path system uses an imported high speed oscillator and mirror to ensure high quality optical transmission, high processing accuracy and long term stability
- The quartz base with high precision linear motors and vision positioning system allows for a high degree of efficiency and precision in stable processing.
- Specially designed automatic loading and unloading system
- to save effort and increase efficiency
