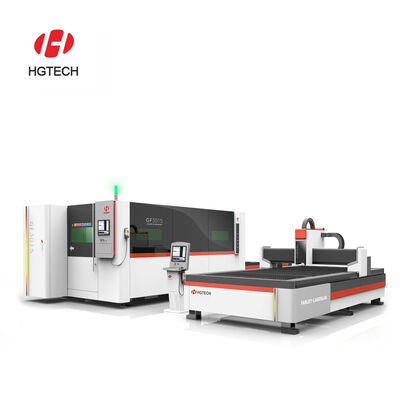

6000W High Power Fiber Laser Cutting Machine for Thick Metal Plate
6000W High Power Fiber Laser Cutting Machine for Thick Metal Plate
Product Overview
The 6000W High Power Fiber Laser Cutting Machine is a state-of-the-art CNC cutting system engineered for heavy-duty metal fabrication applications. Equipped with a high-power fiber laser source, this machine delivers exceptional cutting performance on thick carbon steel, stainless steel, aluminum, and other metal plates. Designed for industrial manufacturing environments, it combines high precision, fast cutting speeds, and reliable operation for continuous production.
Key Features
- High-Power Fiber Laser Source: 6000W fiber laser delivers stable output with excellent beam quality for thick material cutting
- Enhanced Cutting Performance: Achieves clean, burr-free cuts on thick plates with reduced heat-affected zones
- CNC Control System: Industrial-grade controller with intuitive touchscreen interface for easy operation and program management
- Dual Drive Structure: High-precision rack and pinion drive system ensures smooth, accurate motion across the full working area
- Automatic Focusing: Motorized laser head with automatic focus adjustment for effortless material setup and thickness changes
- Efficient Dust Collection: Integrated exhaust and slag collection system maintains a clean working environment
- Redundant Safety Design: Fully enclosed protection with safety interlocks and emergency stop for operator safety
- Intuitive Software: Supports DXF, DWG, PLT, and other common file formats with nesting optimization for maximum material utilization
Technical Specifications
| Parameter | Specification |
|---|---|
| Laser Power | 6000W |
| Laser Type | Fiber Laser |
| Max Cutting Thickness | Up to 25mm carbon steel, 20mm stainless steel, 16mm aluminum |
| Cutting Speed | Up to 35m/min (depending on material and thickness) |
| Working Area | 1500mm x 3000mm (standard, customizable) |
| Positioning Accuracy | ±0.03mm/m |
| Repeat Positioning Accuracy | ±0.02mm |
| X/Y Axis Acceleration | 1.5G |
| Control System | Industrial CNC with touchscreen |
| Cooling System | Integrated industrial water chiller |
| Auxiliary Gas | Oxygen, Nitrogen, Compressed Air |
| Power Requirement | 380V 50Hz 3Phase |
Materials Processed
- Carbon Steel Plate
- Stainless Steel Plate
- Aluminum and Aluminum Alloy
- Copper and Brass
- Galvanized Steel
- Silicon Steel
- Various Alloy Steels
Applications
- Heavy machinery manufacturing
- Shipbuilding and marine engineering
- Aerospace components
- Construction and structural steel
- Agricultural equipment
- Elevator and escalator manufacturing
- Fitness equipment
- Furniture and shelving systems
- General metal fabrication job shops
Advantages
- Superior cut quality on thick materials with minimal post-processing required
- High cutting speeds improve overall production throughput
- Low operational cost with minimal consumable requirements
- Consistent cutting results across long production runs
- Flexible working area configuration to suit different shop layouts
- Compatible with automated material loading and unloading systems
- Comprehensive after-sales support and technical training
The 6000W High Power Fiber Laser Cutting Machine is the ideal solution for metal fabricators seeking to upgrade their cutting capability for thick plate materials, delivering reliability, precision, and productivity in demanding industrial environments.
