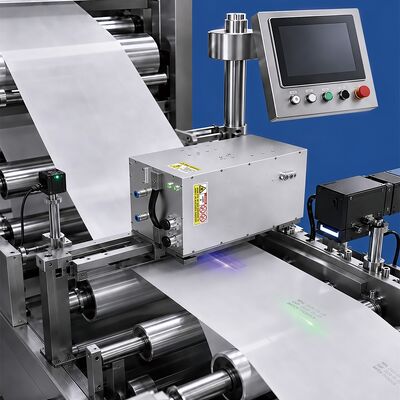

UV Laser Marking Machine for Plastic Glass and Electronic Components
UV Laser Marking Machine for Plastic Glass and Electronic Components
Product Overview
The UV Laser Marking Machine is a precision marking system designed for sensitive materials that cannot withstand the heat generated by traditional fiber laser marking. Utilizing a 355nm ultraviolet laser source, this machine delivers cold processing with minimal heat-affected zones, making it ideal for high-precision marking on plastics, glass, ceramics, and electronic components.
Key Features
- UV Laser Technology: 355nm wavelength provides cold marking with minimal thermal impact on sensitive materials
- High Precision Marking: Achieves fine, sharp marks with high resolution on delicate surfaces
- No Material Burning: UV light is absorbed by the material molecular structure, avoiding charring or discoloration
- Permanent and Contrasting Marks: Creates high-contrast, permanent marks that resist fading and wear
- Air Cooling Design: Compact and energy-efficient with built-in cooling system for continuous operation
- User-Friendly Software: Supports common image and vector formats with intuitive operation interface
- Compact Structure: Space-saving design suitable for production lines and benchtop installation
- Wide Material Compatibility: Handles both organic and inorganic materials with excellent marking quality
Technical Specifications
| Feature | Specification |
|---|---|
| Laser Type | UV Laser (355nm) |
| Laser Power | 3W / 5W / 10W (optional) |
| Marking Area | 110mm x 110mm (standard, optional up to 300mm x 300mm) |
| Marking Speed | Up to 7000mm/s |
| Minimum Line Width | 0.01mm |
| Repeatability Accuracy | ±0.001mm |
| Positioning Accuracy | ±0.002mm |
| Cooling Mode | Air Cooling |
| Control Software | Compatible with Win 7 / 10 |
| Supported Formats | DXF, PLT, AI, BMP, JPG, PNG |
| Power Requirement | 220V 50Hz |
| Gross Weight | Approximately 45kg |
Materials Processed
- Plastic and Polymer Materials
- Glass and Crystal
- Ceramic and Sapphire
- PCB and Electronic Components
- Silicone Rubber
- Medical Devices
- LCD and Touch Screens
- Optical Components
- Packaging Materials
- Jewelry and Watches
Applications
- Electronics and Semiconductor manufacturing
- Medical device marking and traceability
- Automotive component identification
- Packaging and food industry coding
- Pharmaceutical product marking
- Jewelry and luxury goods personalization
- Aerospace part serialization
- Consumer electronics branding
- Optical component marking
- Plastic product branding and marking
Advantages
- Cold marking process eliminates heat damage to sensitive materials
- High-contrast marks on transparent and reflective surfaces
- No consumables required, low operational cost
- Non-contact process prevents material deformation
- Environmentally friendly, no chemical inks or solvents
- Suitable for ultra-fine marking and micro-engraving
- Consistent marking quality across production runs
- Easy integration into automated production lines
- Low maintenance requirements and long service life
The UV Laser Marking Machine is the perfect solution for industries requiring high-precision, non-damaging marking on sensitive materials, delivering exceptional mark quality, process stability, and operational efficiency for demanding manufacturing applications.
