Robot Laser Welding Machine 6 Axis Automatic Metal Welding System
Robot Laser Welding Machine 6 Axis Automatic Metal Welding System
Product Overview

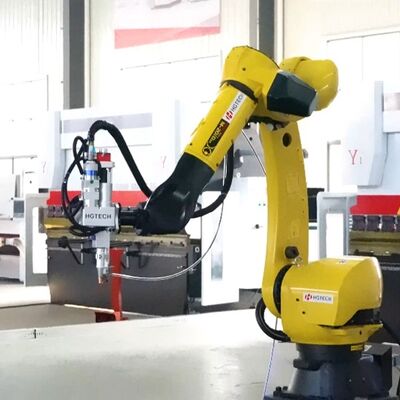

The Robot Laser Welding Machine is a fully automated welding solution that integrates a 6-axis industrial robotic arm with a high-performance fiber laser source. Designed for precision metal welding applications, this system combines the flexibility of robotic motion with the accuracy of laser welding technology, delivering consistent, high-quality welds across complex geometries and high-volume production environments.
Key Features
- 6-Axis Robotic Arm: Six-axis articulated robot provides flexible motion for complex welding paths and angles
- High-Precision Fiber Laser: Delivers focused laser beam for deep penetration and narrow weld seams
- Automatic Welding System: Fully automated operation reduces manual intervention and ensures repeatability
- Vision Positioning: Optional camera system for automatic seam tracking and alignment
- Wide Working Range: Extended reach allows welding of large workpieces in a single setup
- Multi-Layer Welding: Supports multi-pass welding for thick materials and deep penetration requirements
- Real-Time Monitoring: Integrated sensors monitor welding quality and process parameters
- User-Friendly Programming: Offline programming and teach pendant operation for quick setup
- High Efficiency: Fast welding speeds with minimal heat input reduce distortion and warping
- Stable Performance: Continuous operation with reliable laser source and motion control
Technical Specifications
| Parameter | Value |
|---|---|
| Robot Type | 6-Axis Articulated Industrial Robot |
| Number of Axes | 6 |
| Max Working Radius | 1800mm (standard, optional up to 3500mm) |
| Repeatability | ±0.08mm |
| Laser Type | Fiber Laser |
| Laser Power | 1000W / 1500W / 2000W / 3000W (optional) |
| Welding Speed | 0-60mm/s (adjustable) |
| Welding Depth | Up to 5mm (single pass, depends on material and power) |
| Positioning Accuracy | ±0.1mm |
| Controller | Dedicated welding robot controller |
| Programming | Teach Pendant / Offline Programming |
| Supported Formats | Common robot programming languages |
| Power Requirement | 380V 50Hz |
| Cooling | Water Cooling System |
Welding Materials
- Carbon Steel and Stainless Steel
- Aluminum and Aluminum Alloys
- Copper and Copper Alloys
- Brass and Bronze
- Titanium and Titanium Alloys
- Galvanized Steel
- Dissimilar Metal Joints
- Precision Metal Components
Applications
- Automotive Parts Manufacturing
- Aerospace Component Welding
- Kitchen and Bathroom Hardware
- Furniture and Metal Products
- Medical Device Assembly
- Electronics and Electrical Enclosures
- Pipeline and Pipe Welding
- Sheet Metal Fabrication
- Motorcycle and Bicycle Parts
- Precision Machinery Manufacturing
Advantages
- Robotic automation ensures consistent weld quality across production runs
- 6-axis flexibility handles complex 3D welding paths that manual systems cannot reach
- Laser welding produces narrow, deep welds with minimal heat-affected zone
- Reduced workpiece distortion compared to traditional welding methods
- Non-contact process eliminates tool wear and maintenance
- High welding speed improves production throughput
- Easy integration into existing production lines
- Low spatter and clean weld appearance reduce post-processing
- Suitable for both thin sheet and thick plate welding
- Scalable system configuration for different production requirements
The Robot Laser Welding Machine combines robotic flexibility with laser precision, providing an automated welding solution that delivers superior weld quality, high production efficiency, and reliable performance for demanding industrial manufacturing applications.
