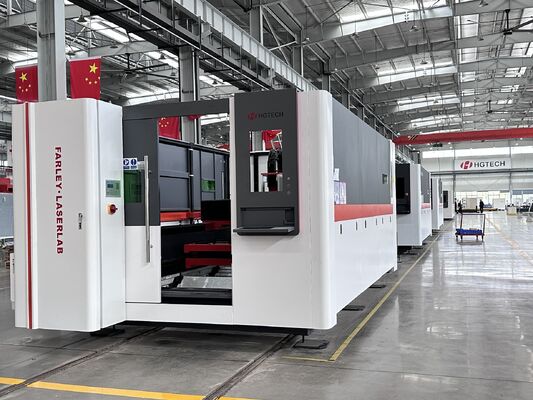

3D Laser Cutting Machine for Metal Tube and Sheet
Product Overview
The 3D Laser Cutting Machine is a multi-axis laser cutting system designed for complex 3D shapes, curved surfaces, and both tube and sheet processing. With 5-axis motion capability, this machine can cut intricate patterns on curved workpieces, automotive components, and structural tubing.
Key Features
- 5-Axis Motion: Full 3D cutting capability for complex shapes
- Tube and Sheet Dual Use: Handles both flat sheet and tubular workpieces
- 3D Cutting Head: Can cut at various angles up to 45 degrees
- Auto Focus: Automatic focus adjustment for different thicknesses
- High Precision: ±0.05mm cutting accuracy
- Intelligent Nesting: Software optimizes material usage
- Wide Material Compatibility: Steel, stainless, aluminum, copper, brass
- Industrial Grade: Heavy-duty frame for continuous operation
Technical Specifications
| Parameter | Value |
|---|---|
| Laser Power | 1500W (standard) |
| Laser Type | Fiber Laser |
| Axes | 5-axis (X, Y, Z, A, C) |
| X Travel | 3000mm |
| Y Travel | 1500mm |
| Z Travel | 1000mm |
| Positioning Accuracy | ±0.05mm |
| Max Cutting Speed | 60m/min |
| Cooling Mode | Water Cooling |
| Control System | Cypcut 3D Edition |
| Power Requirement | 380V 50Hz |
Applications
- Automotive component manufacturing
- Aerospace structural parts
- Decorative metal artwork and signage
- Furniture and decoration metalwork
- Kitchen and bathroom fixtures
- Automotive exhaust and chassis
- Curved surface cutting
- Complex 3D tube and pipe cutting
- Metal profile and channel cutting
- Custom fabrication and prototyping
