The 8000W High Power Fiber Laser Cutting Machine is engineered for industrial-scale cutting of thick metal plates. Equipped with an 8000W fiber laser source, this machine delivers exceptional cutting performance on carbon steel, stainless steel, aluminum, and copper plates up to 40mm thickness. It is designed for heavy-duty fabrication, shipbuilding, and structural steel industries.
PRODUCTS DETAILS
Products
Contact Us
|
8000W High Power Fiber Laser Cutting Machine for Pipe
Detail Information
Highlight:
8000W fiber laser cutting machine
,high power laser pipe cutter
,industrial fiber laser cutting machine
Product Description

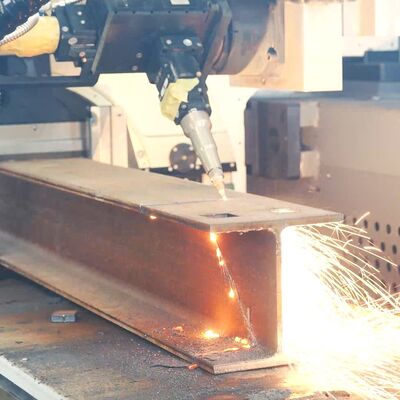

8000W High Power Fiber Laser Cutting Machine for Pipe
Product Overview
Key Features
- 8000W Fiber Laser Source: High power for thick plate cutting
- Thick Plate Capability: Up to 40mm carbon steel, 30mm stainless steel
- High Speed: Fast cutting even on thick materials
- Precision: ±0.05mm positioning accuracy
- Stable Performance: Industrial-grade components for continuous operation
- Automatic Height Controller: Maintains consistent cutting distance
- Exchange Table: Dual-table design for efficient loading/unloading
- User-Friendly Interface: Intuitive CNC control system
- Low Maintenance: Reliable and durable design
- Compact Footprint: Optimized for workshop layout
Technical Specifications
| Parameter | Value |
|---|---|
| Laser Power | 8000W |
| Laser Type | Fiber Laser |
| Cutting Area | 3000mm x 1500mm (standard) |
| Max Cutting Thickness | 40mm carbon steel |
| Positioning Accuracy | ±0.05mm |
| Repetition Accuracy | ±0.03mm |
| Max Cutting Speed | Dependent on material and thickness |
| Cooling Mode | Water Cooling |
| Power Requirement | 380V 50Hz |
| Supported Software | Cypcut / FSCUT |
Applications
- Heavy fabrication and steel structure
- Shipbuilding and marine industry
- Construction machinery
- Pressure vessel and boiler manufacturing
- Aerospace and aviation components
- Automotive chassis and frames
- Agricultural equipment
- General metal fabrication workshops
