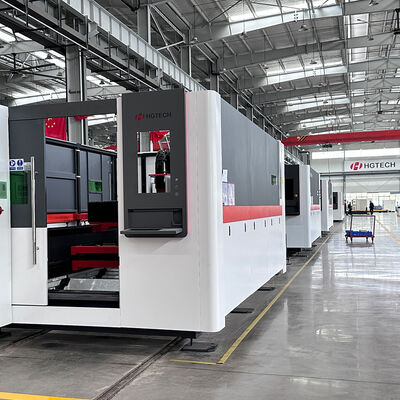

Enclosed Fiber Laser Cutting Machine 3015 with Protective Cover for Sheet Metal

Why Choose an Enclosed Fiber Laser Cutting Machine?

An enclosed fiber laser cutting machine is built inside a full protective cabinet that surrounds the cutting area during operation. The enclosure blocks laser radiation, contains cutting fumes, and keeps loose sparks and slag away from the operator. A viewing window with filtered protective glass allows the operator to monitor the cut without exposure.

This design matters most in workshops where multiple people work near the machine, where safety regulations require laser Class 1 enclosures, or where air quality standards limit fume release.

How Does the Enclosure Improve Safety?

1. Laser radiation is fully contained. Open-bed fiber cutters require the operator to wear laser safety glasses and stay outside a marked perimeter. An enclosed machine meets Class 1 laser safety standards, meaning it is safe for anyone in the room once the door is closed.
2. Fumes and dust are vented through a dedicated exhaust port that connects to a fume extraction system. On stainless and aluminum, cutting generates oxide fumes that benefit from proper ventilation.
3. Sparks and molten slag are contained inside the cabinet rather than spraying onto the shop floor.

Typical Specifications:

• Working area: 1500 x 3000 mm (3015 bed)
• Laser power options: 1500W, 2000W, 3000W, 6000W
• Enclosure type: Fully enclosed with sliding front door
• Viewing window: Laser-safe filtered glass
• Exhaust connection: 150-200 mm diameter port
• Positioning accuracy: +/-0.05 mm
• Control system: CNC
• Supported formats: DXF, DWG, PLT

Who Needs an Enclosed Machine?

This configuration is the right choice for:

1. Shops in regions with strict CE or OSHA laser safety requirements.
2. Facilities where the laser cutter sits on the production floor alongside other workers.
3. Stainless steel and aluminum fabricators concerned about fume extraction.
4. Jobs that require a clean, dust-controlled work environment.
5. Shops planning to add an automated loading/unloading robot later, since the enclosure integrates with robotic cell safety standards.

Open Bed vs Enclosed: Which Is Right for Your Shop?

An open-bed machine costs less, allows easier access for loading oversized sheets, and is simpler to service. It works well in dedicated laser rooms where only trained operators enter. An enclosed machine costs more but removes the need for safety barriers around the machine and reduces PPE requirements. If your machine sits in a shared production area, or if you process a lot of stainless and aluminum where fume control matters, the enclosed design is the practical choice.
