Enclosed Fiber Laser Marking Machine 30W with Safety Cover
Detail Information
Product Description

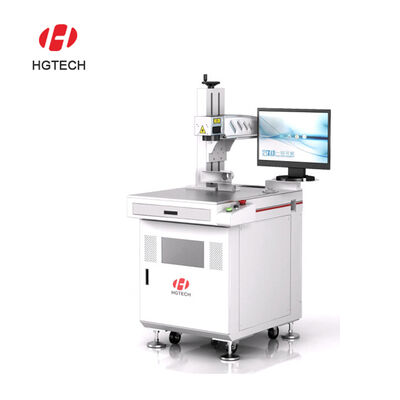

Enclosed Fiber Laser Marking Machine 30W with Safety Cover
Product Overview
The Enclosed Fiber Laser Marking Machine 30W is a fully enclosed, Class 1 laser safety solution designed for permanent high-precision marking on metals and engineered plastics. The integrated safety cover protects operators from laser radiation while maintaining a compact footprint for laboratory, medical device, electronics, and precision component manufacturing.
Key Features
- Fully Enclosed Design: Class 1 laser safety cover
- 30W Fiber Laser Source: Stable, long-life marking performance
- Large Viewing Window: Clear observation of marking process
- Rotary Axis Optional: For cylindrical parts marking
- Red Dot Preview: Precise positioning before marking
- F-Theta Lens: 110mm x 110mm standard marking area
- Built-in Exhaust Port: Connects to fume extraction
- Touchscreen Control: Easy parameter adjustment
- Compact Footprint: Ideal for benchtop use
- Low Maintenance: Air-cooled, no consumables
Technical Specifications
| Parameter | Value |
|---|---|
| Laser Type | Fiber Laser |
| Laser Power | 30W |
| Marking Area | 110mm x 110mm standard |
| Marking Depth | 0.01mm - 0.5mm adjustable |
| Repetition Accuracy | +/-0.002mm |
| Marking Speed | Up to 7000mm/s |
| Cooling Mode | Air Cooling |
| Power Requirement | 220V 50Hz |
| Machine Weight | Approximately 200kg |
| Safety Class | Class 1 enclosed |
Applications
- Metal parts marking and engraving
- Medical device components
- Electronic components and connectors
- Automotive parts identification
- Jewelry marking
- Tool and hardware marking
- Precision instrument labeling
- Plastics and engineering materials
