1500W Handheld Fiber Laser Welding Machine for Metal Welding

A 1500W handheld fiber laser welding machine produces welds that meet standard tensile strength requirements for thin-gauge stainless steel, carbon steel, and aluminum. In production, the weld penetration reaches 2-4mm in carbon steel and 1.5-3mm in stainless, which is sufficient for most sheet metal enclosures, cabinets, kitchen equipment, and automotive components.

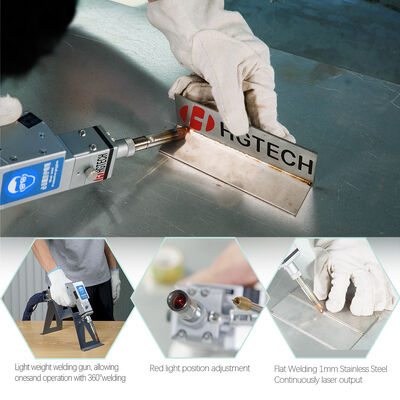

The handheld welding gun gives the operator the flexibility of TIG welding with the speed of automated laser welding. A trained operator typically moves 3-5 times faster than with TIG, and the heat-affected zone is smaller, reducing warping on thin sheets.

1. Speed: Laser welding runs at 0.5-1.5 meters per minute on 2mm sheet, compared to 0.2-0.5 m/min for TIG.
2. Filler wire: The 1500W model uses optional filler wire feeding for gaps up to 2mm. TIG requires manual filler rod.
3. Post-weld: Laser welds on stainless come out bright with minimal discoloration, often eliminating polishing. TIG welds require grinding and polishing on visible surfaces.
4. Skill level: A laser welding operator can be trained in 1-2 days. A qualified TIG welder typically requires months of training.

This machine is the standard entry point for:

1. Sheet metal fabricators welding enclosures, cabinets, and chassis.
2. Kitchen equipment manufacturers welding stainless sinks and countertops.
3. Automotive repair shops welding exhaust and body panels.
4. Signage companies welding aluminum and stainless sign frames.
5. Small job shops that want laser quality without investing in an automated welding cell.

If you mostly weld 1-3mm sheet, the 1500W machine handles the work at lower equipment cost and uses standard 220V power. For 4-6mm thick stainless or aluminum, step up to 2000W. For structural steel welding or thick-section aluminum, the 3000W model provides deeper penetration and faster travel speed.
