Robot Arm Laser Welding Machine for Automotive and 3D Parts

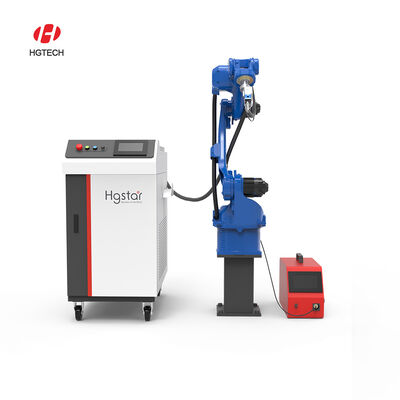

A robot arm laser welding system mounts a fiber laser welding head on a 6-axis industrial robot. The robot moves the laser head through complex 3D paths around automotive components, chassis parts, and assemblies that a flat CNC table cannot reach. The laser source (typically 1000W to 3000W) delivers energy through a fiber cable to the welding head, which focuses the beam and feeds shielding gas.

This configuration is the standard for automotive production lines that weld hydroformed tubes, suspension components, seat frames, and battery trays. The robot repeats the same path millions of times with consistent weld quality, and can be reprogrammed when the part changes.

1. Automotive suspension components and control arms.
2. Seat frames and seat structure assemblies.
3. Battery trays and electric vehicle chassis components.
4. Hydroformed tube and exhaust assemblies.
5. Complex 3D sheet metal assemblies in aerospace and furniture.

• Robot: 6-axis industrial robot, 6-20kg payload
• Reach: 1500-2000mm
• Laser power: 1000W, 1500W, 2000W, 3000W options
• Position repeatability: +/-0.05mm
• Welding speed: 0.5-8 m/min
• Fiber cable length: 10-20 meters
• Control: Robot controller + laser controller integrated
• Safety: Enclosed cell with light curtains and interlocks
• Floor space: Approximately 4m x 5m per cell

This system is for:

1. Automotive Tier-1 and Tier-2 suppliers welding chassis components.
2. Electric vehicle manufacturers welding battery trays and frames.
3. Furniture and metalwork companies welding complex tubular frames.
4. Aerospace component shops welding thin sheet assemblies.
5. General manufacturers moving from manual welding to automation.

A fixed 4-axis welding station handles parts that lie flat or rotate around one axis. If your parts have 3D weld paths around corners, tubes, or complex geometry, the 6-axis robot is required. The robot cell costs more but handles a wider range of part shapes.
