Fiber Laser Cleaning Machine 2000W for Rust Paint Oxide Removal
Detail Information
Product Description

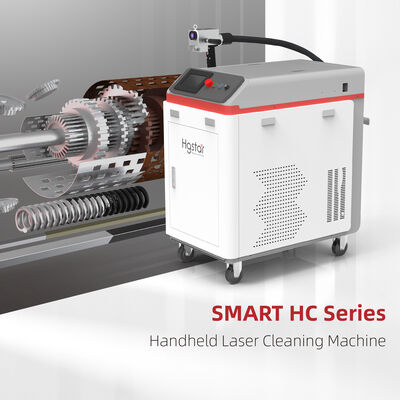

Fiber Laser Cleaning Machine 2000W for Rust Paint Oxide Removal
Product Overview
The 2000W Fiber Laser Cleaning Machine is a high-power laser cleaning system designed for efficient and environmentally friendly removal of rust, paint, oxide layers, and contaminants from metal surfaces. Utilizing advanced fiber laser technology, this machine delivers non-contact, non-abrasive cleaning that preserves the base material while removing unwanted layers quickly and precisely.
Key Features
- 2000W High Power: Delivers powerful cleaning performance for heavy rust, thick paint, and stubborn oxide layers
- Fiber Laser Technology: Stable beam quality with long service life and low maintenance requirements
- Non-Contact Cleaning: No physical contact with the workpiece, preventing surface damage and deformation
- Eco-Friendly Process: No chemicals, no abrasive media, no secondary pollution
- Precise Control: Adjustable laser power, frequency, and scanning width for different cleaning requirements
- Wide Cleaning Width: Large scanning area improves cleaning efficiency and throughput
- Handheld Design: Flexible handheld cleaning head for easy operation on complex surfaces
- Water Cooling System: Stable operation with continuous working capability
- Easy Operation: Simple interface with quick setup and minimal training required
- Low Operating Cost: No consumables required, only electricity needed for operation
Technical Specifications
| Parameter | Value |
|---|---|
| Laser Type | Fiber Laser |
| Laser Power | 2000W |
| Wavelength | 1064nm |
| Cleaning Width | 0-300mm (adjustable) |
| Laser Frequency | 20-50kHz (adjustable) |
| Power Adjustment Range | 10-100% |
| Cleaning Speed | Up to 30m/min (depends on material and contamination) |
| Min Focus Spot | 0.03mm |
| Cooling Mode | Water Cooling |
| Operating Temperature | 15-35°C |
| Power Requirement | 380V 50Hz |
| Total Power | Approximately 5kW |
| Weight | Approximately 150kg |
Cleaning Applications
- Rust Removal: Heavy rust, light rust, oxide scale on steel and iron surfaces
- Paint Stripping: Removal of paint, coating, and lacquer from metal surfaces
- Oxide Removal: Elimination of oxide layers after welding and heat treatment
- Surface Preparation: Pre-welding and pre-painting surface cleaning
- Coating Removal: Removal of galvanized layer and other surface treatments
- Mold Cleaning: Cleaning of injection molds, die-casting molds, and industrial molds
- Weld Seam Cleaning: Removal of weld discoloration and oxide from weld joints
- Historic Restoration: Cleaning of metal artifacts, monuments, and architectural elements
Industries Served
- Automotive and Transportation
- Shipbuilding and Marine Industry
- Aerospace and Aviation
- Rail and Locomotive Manufacturing
- Construction and Steel Structure
- Mold and Tool Manufacturing
- Heavy Machinery and Equipment
- Petrochemical and Oil & Gas
- Infrastructure and Bridge Maintenance
- Historical Building Restoration
Advantages
- Replaces traditional sandblasting, chemical cleaning, and manual grinding
- No damage to the base material surface
- No need for secondary cleaning or surface treatment
- Reduces labor intensity and improves worker safety
- Suitable for both flat surfaces and complex geometric shapes
- Clean and dry working environment with no water or chemicals
- Consistent cleaning quality across large areas
- Can be integrated into automated production lines
- Long laser source service life of up to 100,000 hours
- Quick return on investment through improved efficiency and reduced waste
The 2000W Fiber Laser Cleaning Machine provides a modern, efficient, and environmentally friendly solution for industrial surface cleaning, offering superior performance compared to traditional cleaning methods while maintaining the integrity of the workpiece surface.
