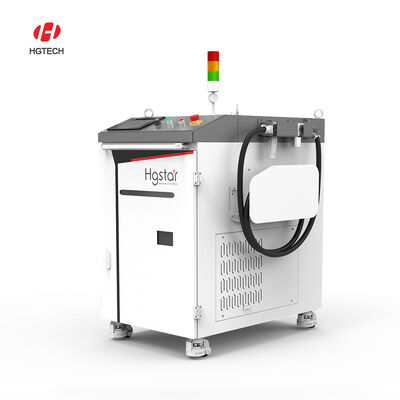

1000W Handheld Laser Cleaning Machine for Rust and Paint Removal
How Well Does a 1000W Laser Remove Rust?
A 1000W handheld laser cleaning machine removes light to medium rust, old paint, oxide film, and contamination from metal surfaces without touching the base material. The laser beam vaporizes the surface layer at controlled energy, leaving the underlying metal intact. At typical scan speeds of 10-20 square meters per hour, it replaces sandblasting, chemical stripping, and manual grinding for many surface preparation jobs.
Unlike abrasive methods, laser cleaning produces no secondary waste such as spent sand or chemical slurry. The fumes are captured by an external exhaust system, and the process is dry, which means parts can move directly to painting or welding after cleaning.
What Can the 1000W Model Clean?
- Light surface rust on carbon steel and stainless steel.
- Old paint and powder coating on metal parts.
- Oxide layer on aluminum and stainless before welding or painting.
- Weld discoloration and spatter on stainless welds.
- Mold release agent and residue on injection molds.
Typical Specifications:
- Laser power: 1000W
- Cleaning width: 100mm max (adjustable 20-100mm)
- Cleaning speed: 10-20 square meters per hour (light rust)
- Power supply: 220V single phase
- Cooling: Built-in water chiller
- Handheld gun weight: Approximately 800g
- Fiber cable length: 5 meters
- Operating temperature: 5-40 C
Who Buys a 1000W Laser Cleaner?
This power level is the standard entry point for:
- Metal restoration shops removing rust from antique and vehicle parts.
- Welding shops cleaning weld seams and removing oxide before welding.
- Mold shops removing release agent and residue from injection molds.
- Ship and rail maintenance teams cleaning rust from structural surfaces.
- Fabricators preparing metal surfaces for painting or powder coating.
1000W vs 2000W vs 3000W: Choosing the Right Power
For light rust, paint stripping, and weld cleaning on small parts, the 1000W machine is sufficient and costs less. For heavy rust, thick coatings, and high-throughput production, step up to 2000W or 3000W, which clean 2-3 times faster and handle thicker contamination.
FAQ:
Q: Does laser cleaning damage the metal surface?
A: At correct parameters, the laser removes only the contamination layer. The base metal surface is not abraded, and in many cases the surface finish is improved.
Q: Is it safe to operate?
A: The operator wears laser safety goggles matched to the 1064nm wavelength. The work area should be enclosed or cordoned off, and fume extraction is required.
Q: How does it compare to sandblasting?
A: Sandblasting creates dust and spent media and can warp thin sheet. Laser cleaning is dry, precise, and leaves no subsurface damage. It is slower than sandblasting on heavy rust but cleaner for sensitive surfaces.
Q: Can it clean aluminum and copper?
A: Yes. The 1000W model effectively removes oxide and paint from aluminum, copper, and brass. Reflective surfaces require slightly higher power settings.
Q: What maintenance is needed?
A: The protective lens on the handheld gun requires periodic cleaning and replacement when damaged. The chiller water should be changed every 6 months.
